INCRA Cleansweep downdraft dust collection
precision fences > Router system accessories
INCRA CleanSweep Downdraft Dust Collection
Part Number: CLEANSWEEP, CSMLR-SINGLE, CS-MLRINGSET, CS-MLRGUIDE, CS-ADAPTER
Improved dust collection for
all of your router table work!
Keeps your shop cleaner by collecting sawdust at the source using your 4" dust collector!
This must-have accessory is one of the easiest ways to improve the quality of your router table time! Proudly American-made.
INCRA CleanSweep Downdraft Dust Collection Cabinet:
The CleanSweep Cabinet attaches to the underside of laminated MDF or phenolic router tables from INCRA, Woodpeckers, JessEm, and many others (see compatibility notes*below).
The vacuum generated inside the cabinet by your 4" dust collection hose pulls chips and fine dust downward past the router bit, keeping the table surface and your surrounding shop cleaner than you'd ever imagined. The effect is even more powerful when combined with INCRA CleanSweep Rings for INCRA MagnaLOCK™ router plates and router lifts.
The vacuum generated inside the cabinet by your 4" dust collection hose pulls chips and fine dust downward past the router bit, keeping the table surface and your surrounding shop cleaner than you'd ever imagined. The effect is even more powerful when combined with INCRA CleanSweep Rings for INCRA MagnaLOCK™ router plates and router lifts.
Unlike a dust port mounted on the fence, the INCRA CleanSweep Cabinet works for every cut and not just when the fence is covering the router bit, giving you excellent collection even when routing grooves, making box joints & dovetails, or shaping curved edges without a fence.
INCRA CleanSweep Router Table Dust Collection Cabinet Features:
- Keeps Your Shop Cleaner by Collecting Sawdust at the Source- Works for Every Cutting Operation Including Routing Grooves and Cutting Box Joints & Dovetails
- Installs Easily on Every INCRA Router Table
- Reduces Router Noise
- Combine with INCRA CleanSweep Rings for Added Performance
- Precision Molded ABS & Steel Cabinet Assembles Quickly & Accurately
- Integrated 4" Steel Blast Gate, 4" Hose Clamp and Mounting Hardware Included
- Vertically-sliding Door Saves Space, Seals Tightly, and Won't Slam Closed
*Note: Important: The CleanSweep cabinet is intended for use only with conventional woodworking dust/chip collectors rated at 350 cfm or greater that have a minimum 4" inlet diameter. The CleanSweep is NOT compatible with typical Wet/Dry Shop Vacuums with 2-1/2" inlet diameters.
*Compatibility notes for common router table types:

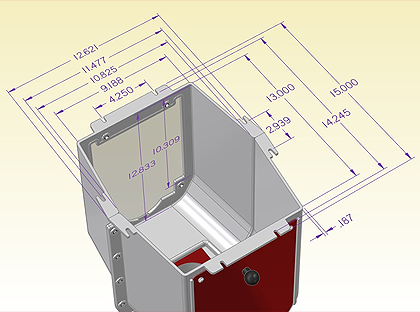

The CleanSweep Cabinet screws directly to the underside of laminated MDF and phenolic router tables that have their bottom table opening and related hardware within the CleanSweep's 9-1/8" x 12-3/4" inside dimensions. The cabinet's overall height is 15-3/4" from the mounting flange to the end of the dust port.
Kreg , Woodhaven, and laminated MDF tables from JessEm require the CleanSweep Table Adapter to clear the bottom-mounted leveling mechanism used at their table openings' corners.
The CleanSweep cabinet is not directly compatible with router tables that use remotely-operated router lifts. Router table, hose, and router lift not included.
Individual INCRA CleanSweep MagnaLOCK™ Rings
These laser-cut steel rings feature extra openings in strategic locations to dramatically increase dust-collecting downward airflow when combined with an INCRA CleanSweep Dust Collection Cabinet and your 4" dust collection hose.
The rings fit all INCRA MagnaLOCK™ Plates and Lifts produced since 2006 (see compatibility notes* below) and are available in inside diameters to cover wide variety of router bits - 3/8", 5/8", 1", 1-3/8", 1-5/8", & 1-7/8".
*Compatibility notes for common router table types:
These rings fit ONLY 2006- or newer INCRA Router Plates and Lifts that have a 3-5/8" opening through the bottom of the plate. This ring is NOT compatible with grey phenolic MagnaLOCK™ router plates or first-generation gold INCRA Mast-R-Lifts that have a 3-1/2" opening through the bottom of the plate.
These rings fit ONLY 2006- or newer INCRA Router Plates and Lifts that have a 3-5/8" opening through the bottom of the plate. This ring is NOT compatible with grey phenolic MagnaLOCK™ router plates or first-generation gold INCRA Mast-R-Lifts that have a 3-1/2" opening through the bottom of the plate.
INCRA 6-pc CleanSweep MagnaLOCK™ Ring Set
The laser-cut steel rings feature extra openings in strategic locations to dramatically increase dust-collecting downward airflow when combined with an INCRA CleanSweep Dust Collection Cabinet and your 4" dust collection hose.
The rings fit all INCRA MagnaLOCK™ Plates and Lifts produced since 2006 (see compatibility notes* below) and are available in inside diameters to cover a wide variety of router bits - 3/8", 5/8", 1", 1-3/8", 1-5/8", & 1-7/8".
*Compatibility notes for common router table types:
These rings fit ONLY 2006- or newer INCRA Router Plates and Lifts that have a 3-5/8" opening through the bottom of the plate. This ring is NOT compatible with grey phenolic MagnaLOCK™ router plates or first-generation gold INCRA Mast-R-Lifts that have a 3-1/2" opening through the bottom of the plate.
These rings fit ONLY 2006- or newer INCRA Router Plates and Lifts that have a 3-5/8" opening through the bottom of the plate. This ring is NOT compatible with grey phenolic MagnaLOCK™ router plates or first-generation gold INCRA Mast-R-Lifts that have a 3-1/2" opening through the bottom of the plate.
INCRA CleanSweep MagnaLOCK™ Porter-Cable Guide Bushing Ring
This CleanSweep ring fits all INCRA MagnaLOCK™ Plates and Lifts produced since 2006 (see compatibility notes* below). Features a 1-3/16" inside diameter within a shouldered recess to accept standard Porter-Cable style guide bushings.
The laser-cut steel ring features extra openings in strategic locations to dramatically increase dust-collecting downward airflow when combined with an INCRA CleanSweep Dust Collection Cabinet and your 4" dust collection hose.
Porter-Cable Guide bushing and lock ring not included.
*Compatibility notes for common router table types:
These rings fit ONLY 2006- or newer INCRA Router Plates and Lifts that have a 3-5/8" opening through the bottom of the plate. This ring is NOT compatible with grey phenolic MagnaLOCK™ Router Plates or first-generation gold INCRA Mast-R-Lifts that have a 3-1/2" opening through the bottom of the plate.
These rings fit ONLY 2006- or newer INCRA Router Plates and Lifts that have a 3-5/8" opening through the bottom of the plate. This ring is NOT compatible with grey phenolic MagnaLOCK™ Router Plates or first-generation gold INCRA Mast-R-Lifts that have a 3-1/2" opening through the bottom of the plate.
INCRA CleanSweep Router Table Adapter
Improve your router table’s dust collection! This computer-machined MDF adapter allows attaching the INCRA CleanSweep Dust Collection Cabinet to router tables with corner-mounted plate levelers and 9-1/4” x 11-3/4” plate openings such as Kreg, Woodhaven, and laminated MDF tables from JessEm.
In addition to providing normal access to these tables’ original corner-mounted lever leveling system, the adapter replicates the router plate support ledge found in the openings of INCRA router tables, complete with 10 large-diameter leveling bolts.
Because it increases the plate’s support surface, the CleanSweep Adapter is perfect if you own a Kreg or other “ledge-less” router table and want to upgrade to compatibility with an INCRA MagnaLOCK router mounting plate or router lift.
Includes 10 lo-head router plate leveling bolts, screws for attaching the adapter to the router table, and longer screws for mounting the INCRA CleanSweep Dust Collection Cabinet. The outside dimensions are 15 1/2" x 15 1/2".
video
detail focus
Eliminate dust at the source.
Integrated 4" steel blast gate with included hose clamp.
Roomy interior accommodates large router lifts.
Fits INCRA and most* other MDF or Phenolic tables with a 9-1/4" x 12" or smaller opening.
Space saving vertically sliding door.
downloads
Click to download INCRA CleanSweep Dust Collection Cabinet Instructions in PDF format.
Click to download INCRA CleanSweep Adapter Addendum in PDF format.
video demos
Click to download INCRA CleanSweep Cabinet Video in Windows Media format.
